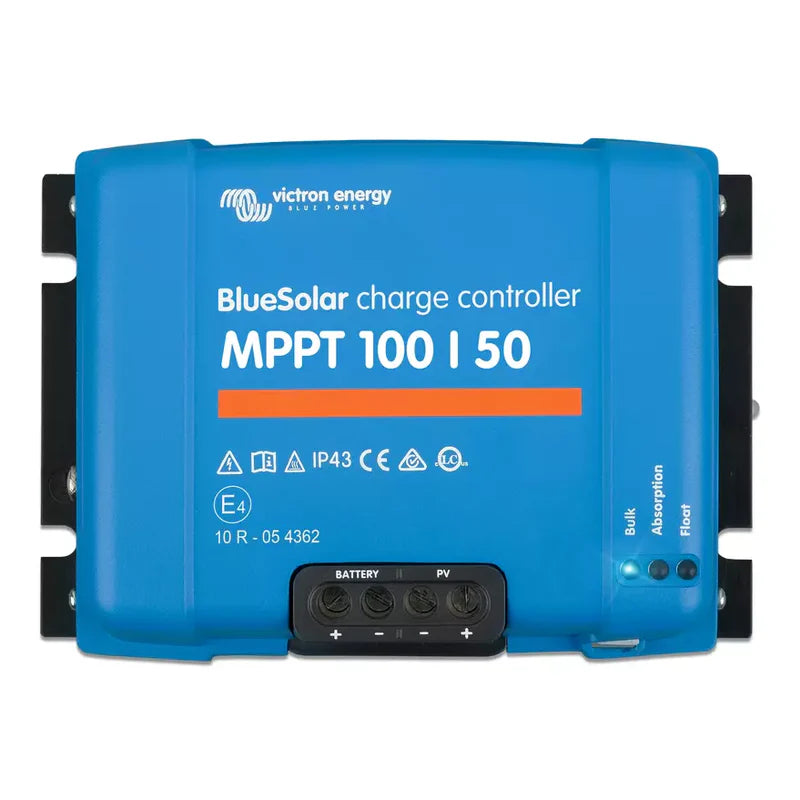

Victron BlueSolar MPPT Charge Controller 150/35 to 250/100 - SCC010070200

Victron BlueSolar MPPT 150/35 through 250/100 solar charge controllers are built for larger off-grid, marine, RV, and professional solar power systems

Offers the same advanced charging hardware as the Victron SmartSolar range, but without built-in Bluetooth

Optional VE.Direct Bluetooth Smart dongle allows wireless setup, monitoring, and configuration through the VictronConnect app

Supports 12V, 24V, 36V, and 48V battery systems for flexible solar charging applications

Available in 150V and 250V PV input models to support different solar panel array configurations

Charge current options range from 35A to 100A, making this series suitable for mid-size systems up to large multi-kW solar arrays

Ideal for larger off-grid homes, cabins, expedition vehicles, liveaboard yachts, large RVs, and GX-monitored solar installations

150V models are designed for solar arrays with lower series voltage requirements

250V models allow more solar panels to be connected in series for higher-voltage PV array setups

Ultrafast MPPT technology helps maximize solar energy harvest, even during changing light conditions or partial shading

Delivers up to 98% efficiency on 150-series models and up to 99% efficiency on 250-series models

VE.Direct communication is included on all models for setup, monitoring, and system integration

VE.Can communication is available on the 150/100, 250/70, and 250/100 models for larger multi-controller systems

VE.Can models can be daisy-chained with up to 25 controllers for synchronized charging across large solar arrays

150/60 and 150/70 models are available with Tr screw terminals or MC4 connector versions for different PV wiring preferences

Larger 60A and higher models include remote on/off functionality for integration with battery management systems

Programmable relay is available on 60A and larger models for alarms, system events, and advanced control

Multi-stage adaptive charging supports a wide range of battery chemistries

Includes eight pre-programmed charging profiles plus a fully programmable charging mode

Lithium battery systems must be configured with the correct charging profile before use

12V, 24V, and 48V battery voltage is automatically detected

36V battery systems can be selected manually using the software tool

0V battery recovery allows the controller to start charging a fully discharged battery bank

Passive cooling design provides quiet operation with no cooling fan

Stores up to 46 days of performance trend data directly on the controller

Built-in protections include PV reverse polarity, output short circuit protection, and over-temperature protection

Operating temperature range of -30°C to +60°C supports harsh off-grid and mobile environments

Full rated output is available up to 40°C

IP43 electronics protection and IP22 connection area protection provide durability for suitable installation environments

Compatible with Cerbo GX MK2, Ekrano GX, and other GX devices for always-on monitoring and remote access through VRM

Pairs well with Smart Battery Sense or BMV-712 for more accurate battery voltage and temperature-based charging

Battery fuse should be sized according to the selected controller charge current

VE.Can models require RJ45 UTP cables and VE.Can terminators for proper multi-controller bus setup

Maximum PV power ranges up to 5,800W on 48V systems with 100A models

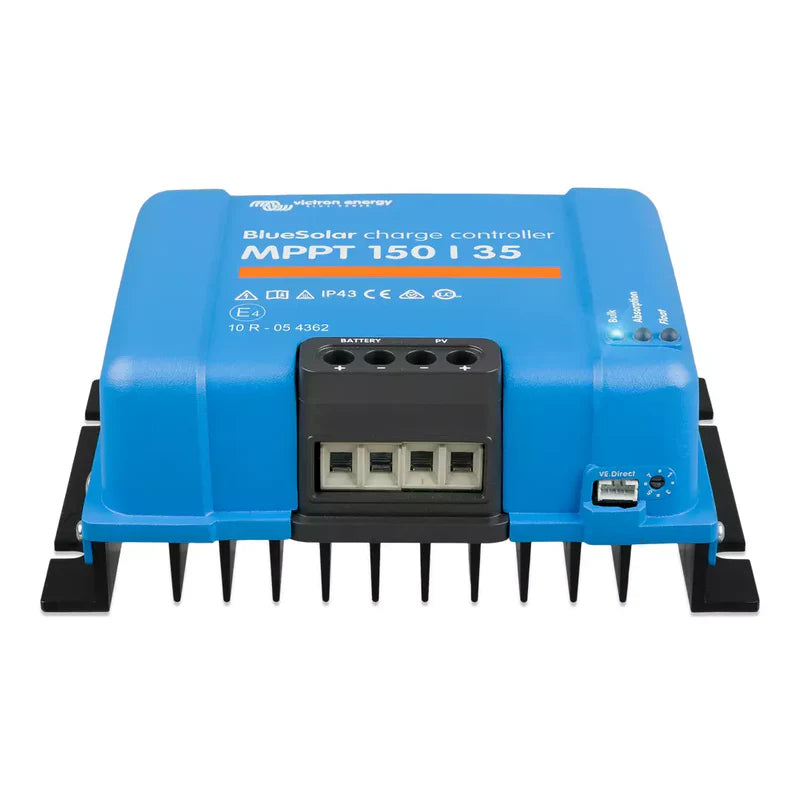

150/35 model supports up to 500W at 12V, 1,000W at 24V, 1,500W at 36V, and 2,000W at 48V

150/45 model supports up to 650W at 12V, 1,300W at 24V, 1,950W at 36V, and 2,600W at 48V

150/60 model supports up to 860W at 12V, 1,720W at 24V, 2,580W at 36V, and 3,440W at 48V

150/70 and 250/70 models support up to 1,000W at 12V, 2,000W at 24V, 3,000W at 36V, and 4,000W at 48V

150/100 and 250/100 models support up to 1,450W at 12V, 2,900W at 24V, 4,350W at 36V, and 5,800W at 48V

Designed for installers who need reliable Victron MPPT solar charging without built-in Bluetooth

Choose a SmartSolar model instead if Bluetooth connectivity is required out of the box

Backed by a 5-year Victron warranty from date of purchase, with an optional warranty extension available

Excellent choice for high-capacity solar systems needing efficient MPPT charging, flexible communication options, and long-term Victron reliability
